Steering Wheel Swap on my Audi TT / Flat Bottom Mk2 fitted on a Mk1


Not too long ago, I decided I had enough with the original steering wheel… So I checked my options and my first question was: What can I fit? An OEM Audi steering from another model? Mono? (The name came back from my young tuning days…) Any other manufacturers out there? One thing was for sure, I wanted an air bag & safety on my side.

After a lot of searching on many TT forums, I found out that it is possible to replace the OEM by many other wheels, but it comes at a price and needs technical skills. Not too hard, but definitively not a plug and play. That’s why I don’t see many out there I thought.

But hey, my mind was set and I had decided to change it. So I looked at what others had installed and none fit my taste aside from Nexon models. So I wrote to Izzy (Nexon Motors @ Facebook) and he confirmed he already had one customer installing a custom wheel in his TT. What? Who? Do you have a name I asked him? “Steve / V6RUL” answered! Really? Anyone who follows ttforum.uk has read one of Steve’s posts. So I wrote to Steve who sent me a few pics and confirmed Nexon was worthy of my trust.

A few days later, I confirmed to Izzy I had found the model that I wanted and gave him a 25% deposit. And then I waited, waited and… waited. I wrote to Izzy a couple of times and was told the wheel was being made. A few days later, he sent me pics and two weeks later… ding-doongg! The bell rung and Brown was here with a delivery from half way around the globe.

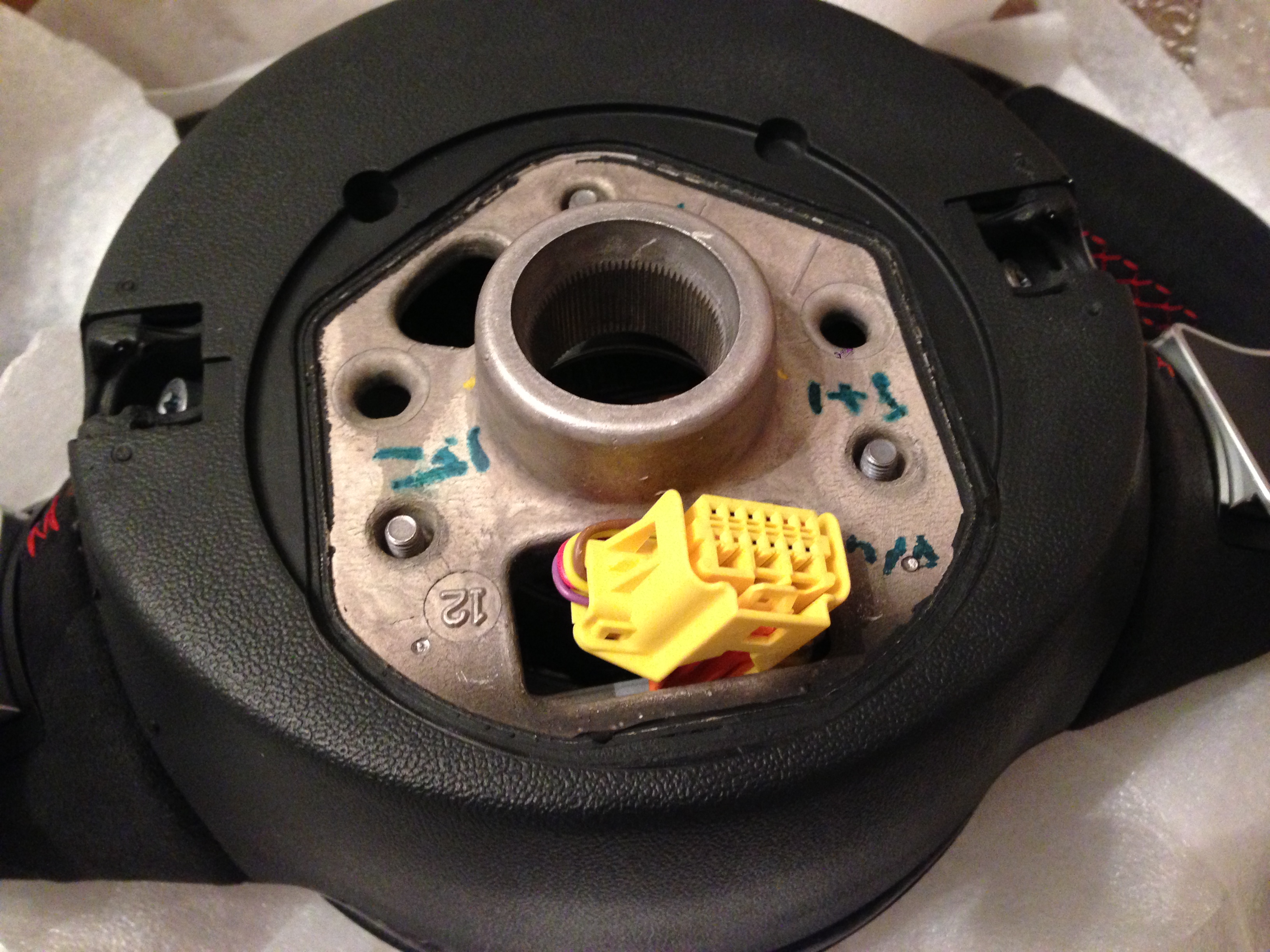

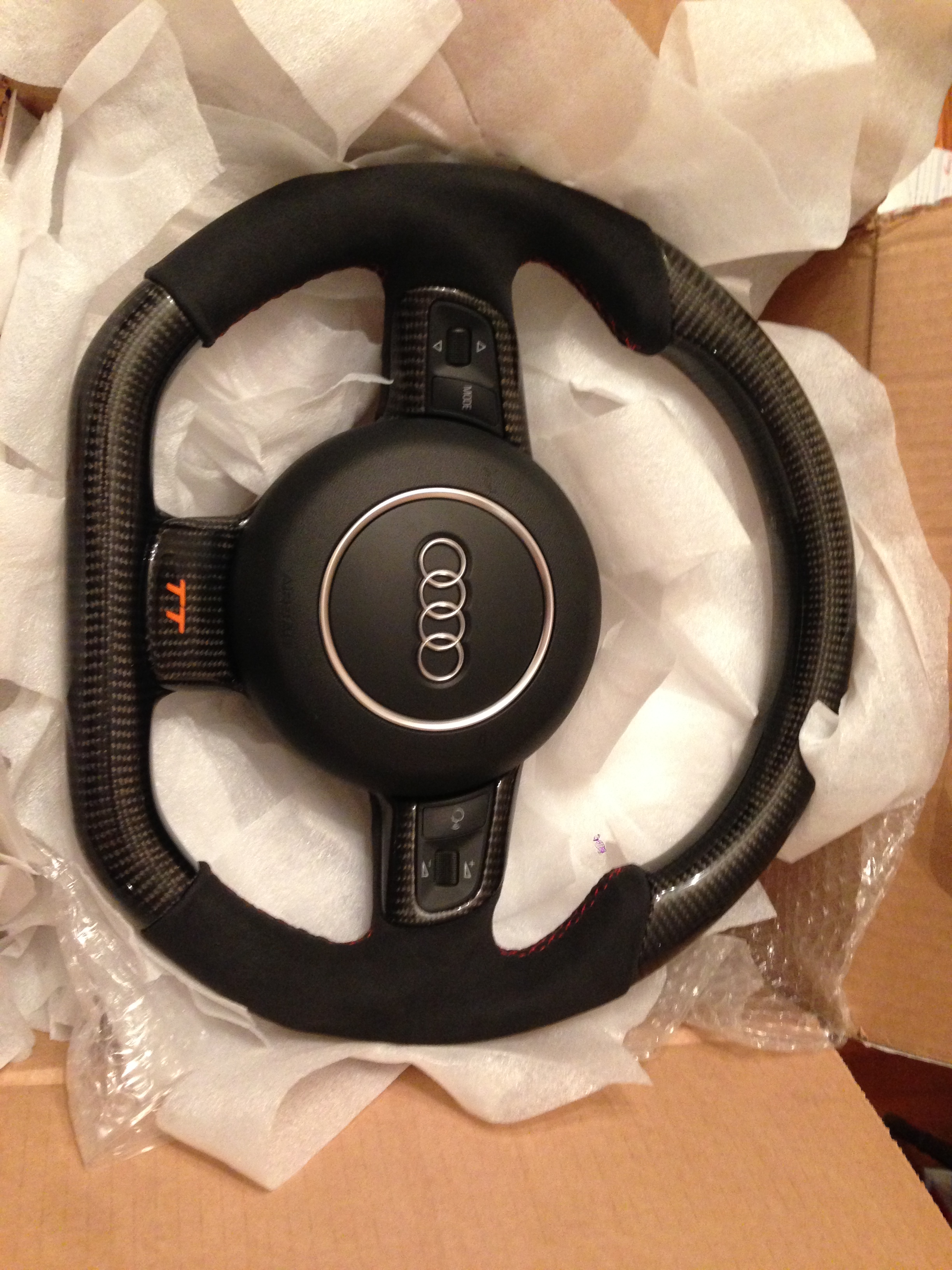

IMG_1082 IMG_1083 IMG_1084

Installation

The next step was installation… Not sure exactly how I would do this, I searched the web and found a way, some pics here and there but no real tutorial. “Let’s make one” I thought. So this is it! I am using pics from several websites + my own. Oh and BTW, no the radio buttons won’t work. I’ve had this question many times. There is a way and I will explore it later. (The OEM MK1 radio is very simple and does not require CANBUS, unlike the MK2)

 – Step 1 –

Remove the + connector from the car battery. Take off the old steering wheel.

Cut the yellow plug off the MK1 airbag loom

As you look at the yellow MK1 plug, the colours are as follows

1 – Black (green paint dot) – Airbag
2 – Black – Airbag
3 – Brown – Horn Switch
4 – Black – Horn/ chassis GND

Next cut the plug off the MK2 loom and separate the unused part of the loom for the black plug.

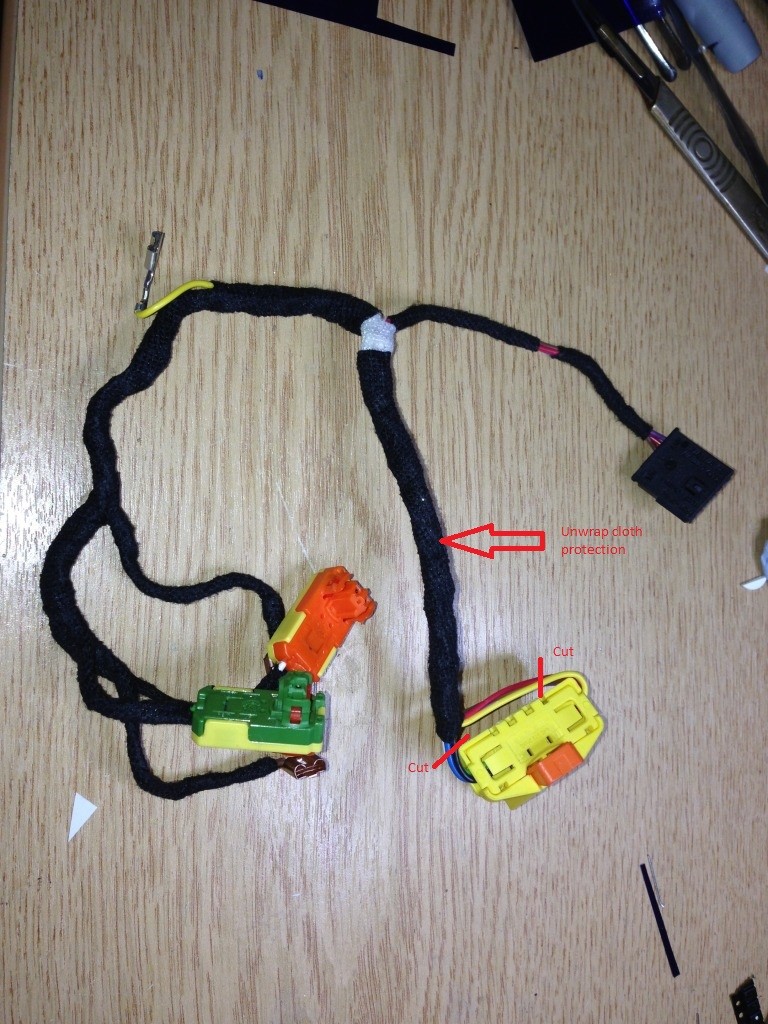

step1

step1b

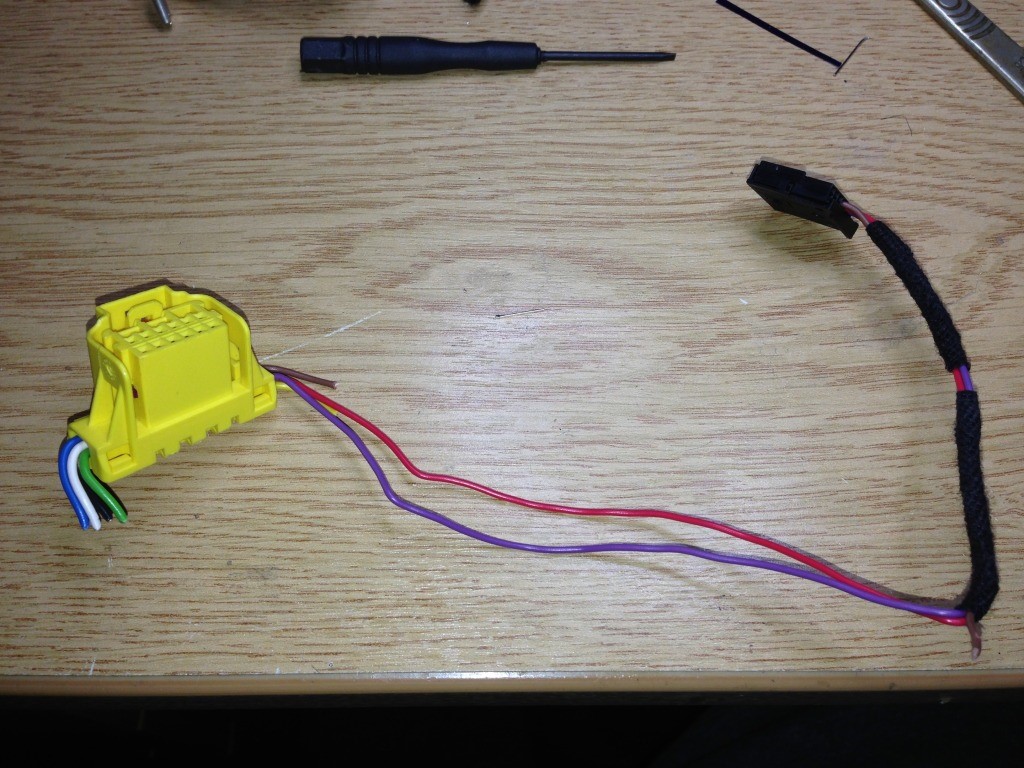

This is the bit you don’t need and want to remove

step1c

Next you need to connect the horn wiring to the MK1 plug

Brown from the MK2 Loom to the single black on the MK1 plug for the GND – Pin 4 on the yellow MK1 plug

Yellow from the MK2 Loom to the brown on the MK1 Plug for Horn switch – Pin 3 on the yellow MK1 plug

This is the change from picture below as you only want to connect one of the airbag plugs

Green on the MK2 Loom to the black on the MK1 plug (next to the brown) Pin 2 on the yellow MK1 plug

Black on the MK2 Loom to the black on the MK1 plug (closest the edge & has green paint in the pic) Pin 1 on the yellow MK1 plug

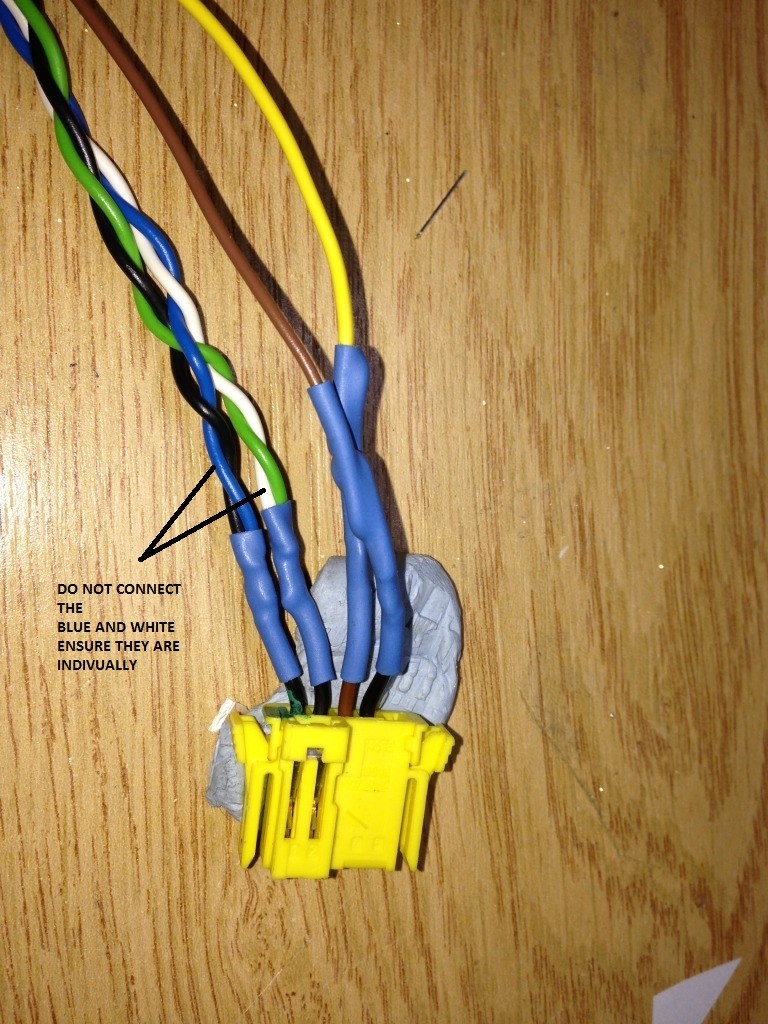

Individually insulate both the blue and white as you don’t want to accidentally trigger that stage!!!!

step1d

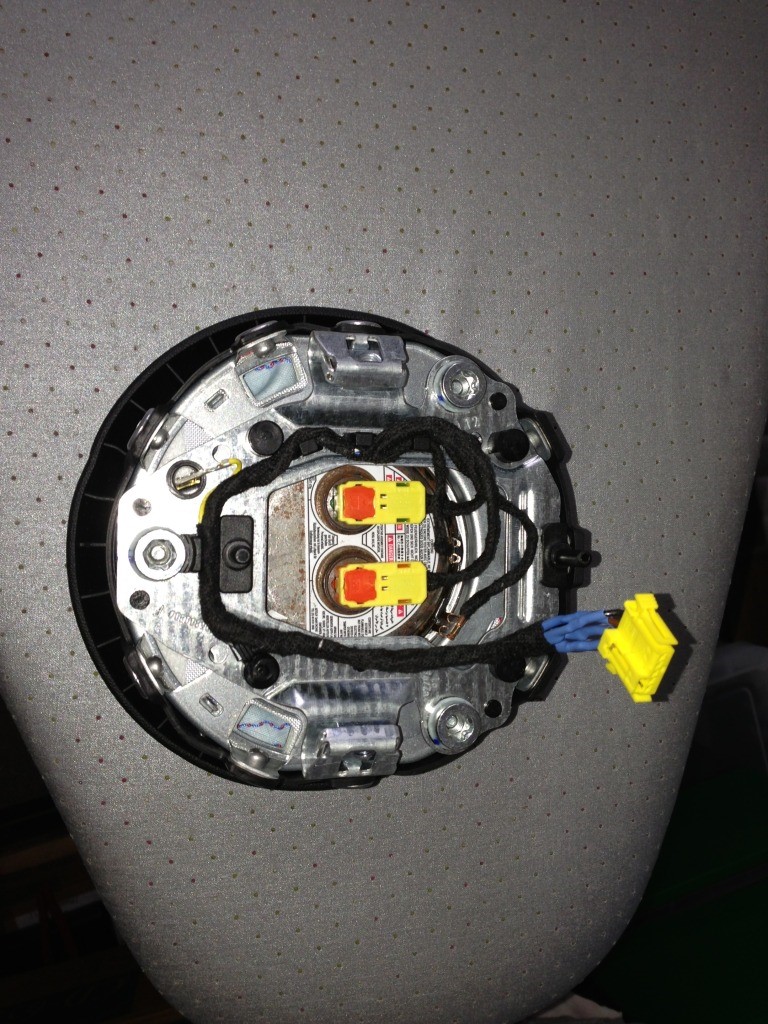

I wound the protective cloth back onto the loom to keep everything tidy. Also, make sure you dress the loom back into the retainers on the back of the airbag as if its not tidy, it will foul as you try to mount the bag in the wheel.

step1e

Wired like this, the orange airbag plug will NEVER fire but the green airbag plug will.

 – Step 2 –

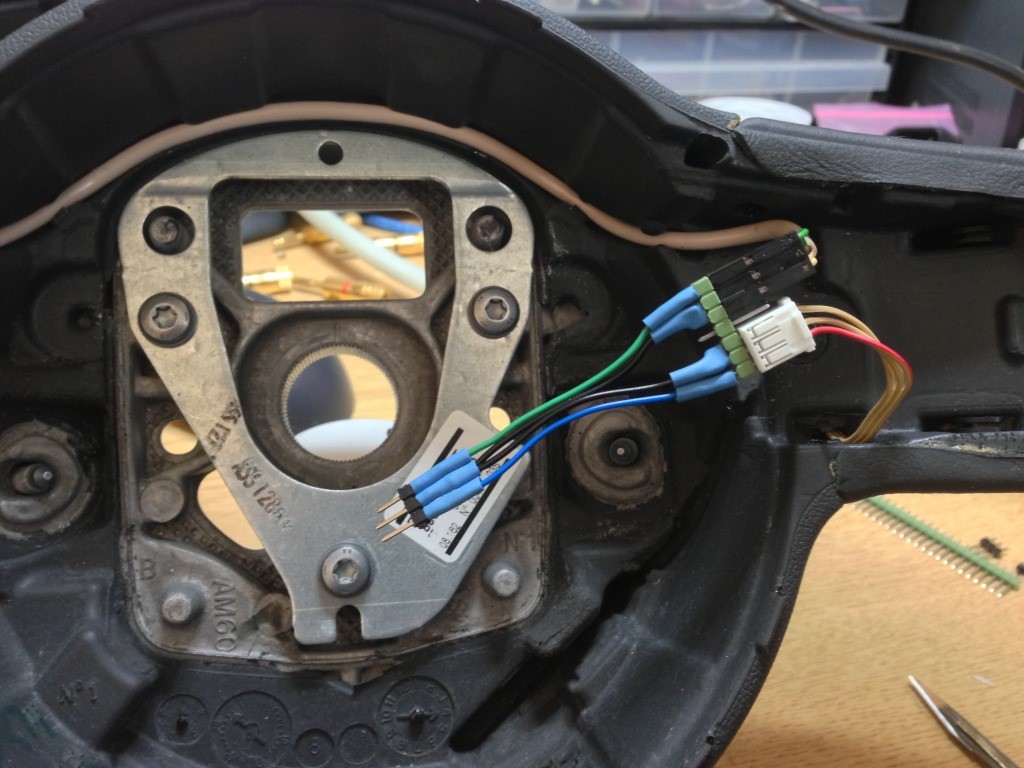

DSG Paddles. Made a loom adapter today and removed the canbus logic for the DSG paddles.

step2

Thats just the DSG paddles. In the MKi wheel there are 3 wires.

+gear up switch line
-gear down switch line
Common

In the MK2 wheel, there is canbus logic on the board under the right coverplate as the MK2 TT uses a single wire canbus connection to the DSG. On the MK1 the logic is external to the wheel and so uses the discrete button presses. I’ve just removed the canbus PCB and connected the wiring to work like the original switches. Of the 3 pin connections to the paddles. the middle pin is the common. then I just used a meter to work out which was the correct one for the switchline.

 – Step 3 –

The horn is just another switch that is part of the original wheel loom, I just extended the wire as required.

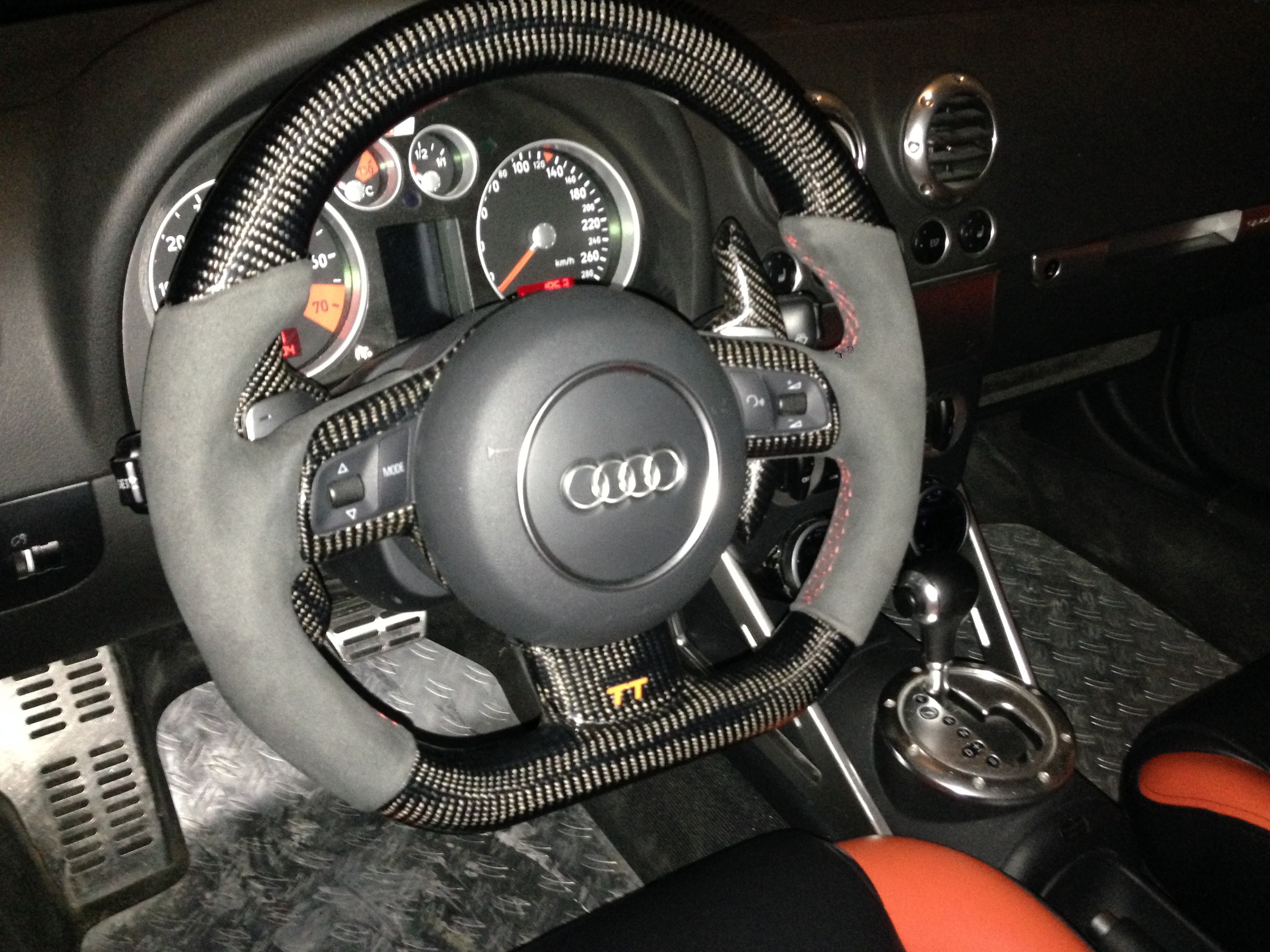

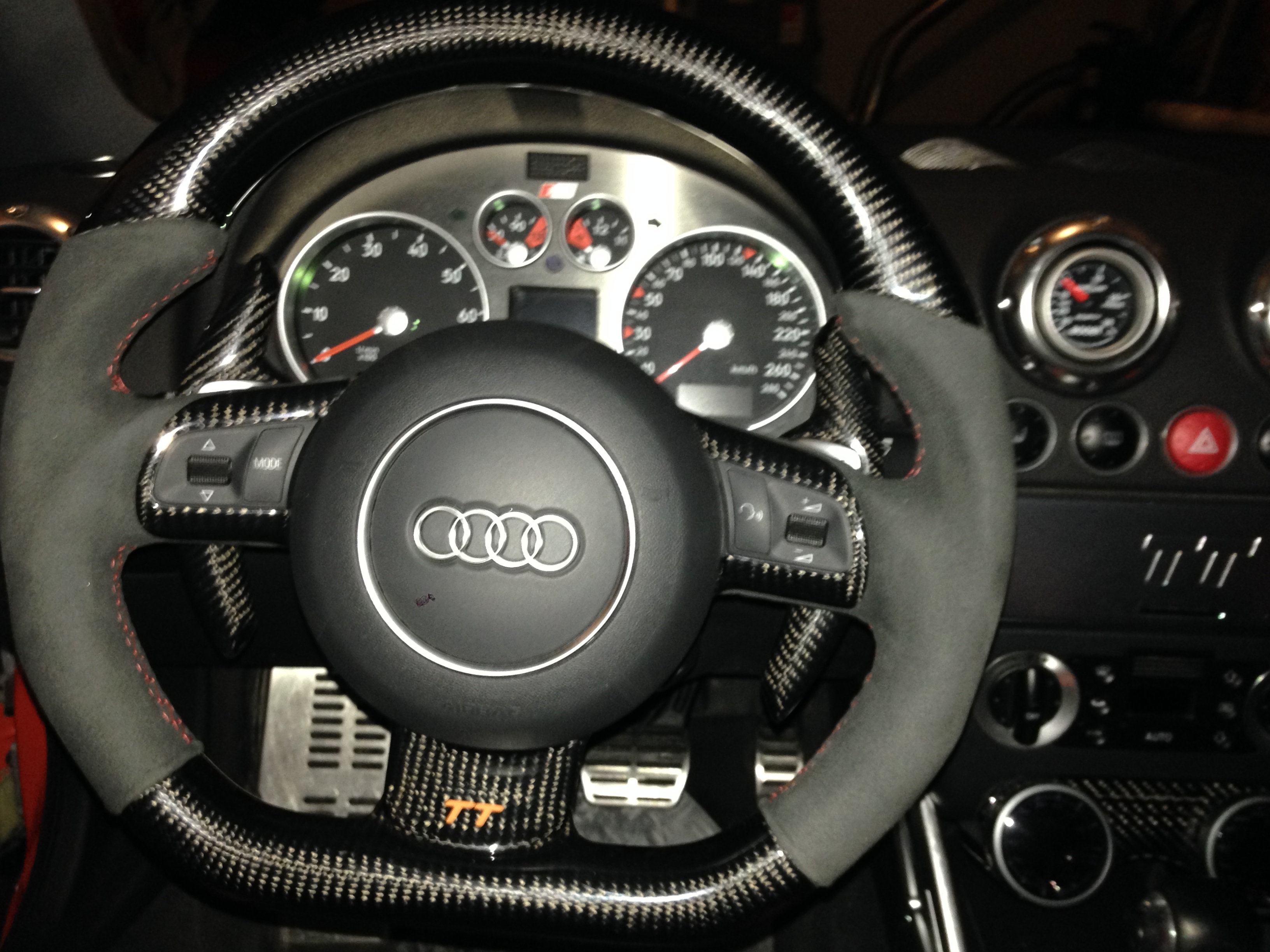

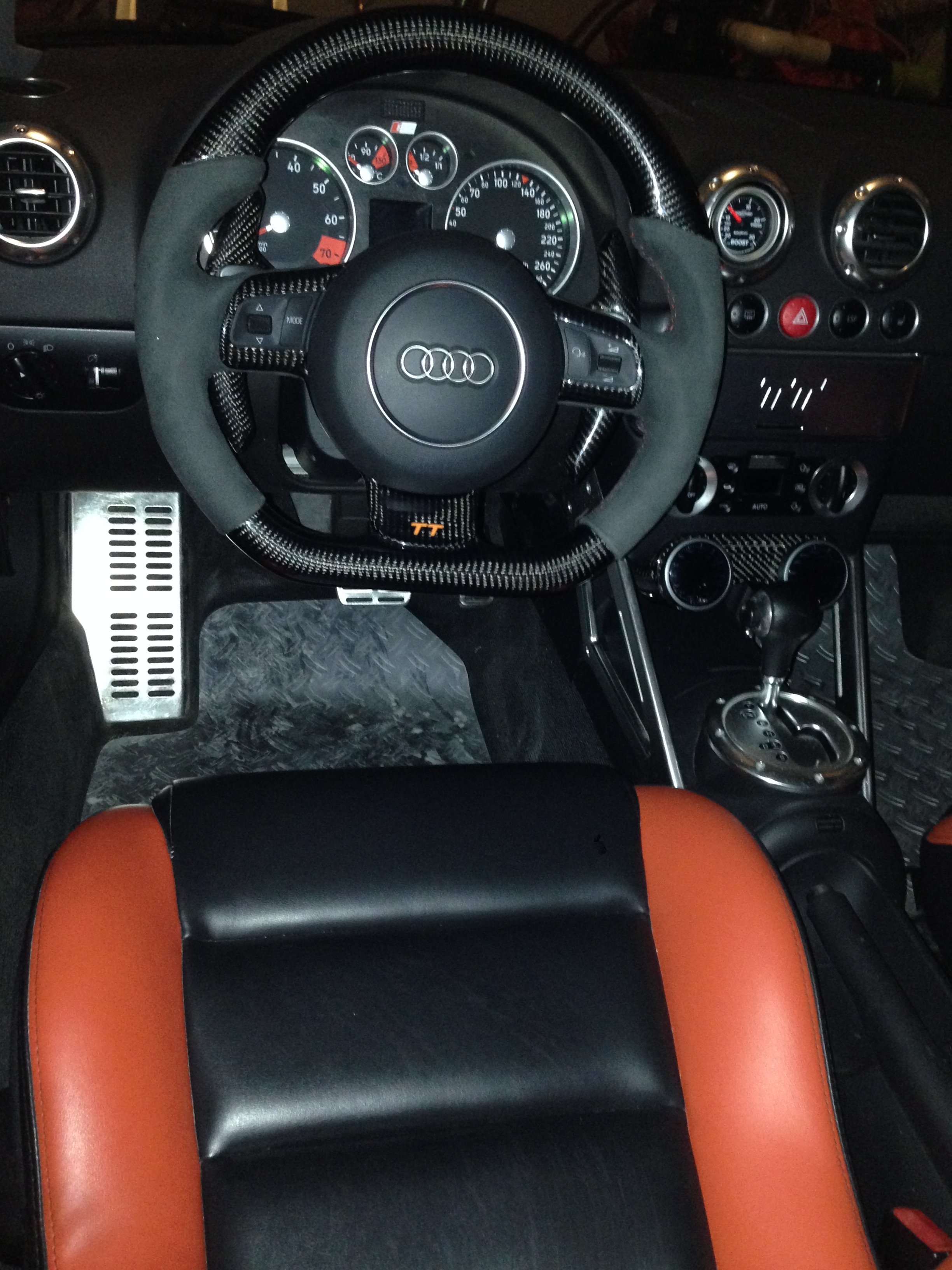

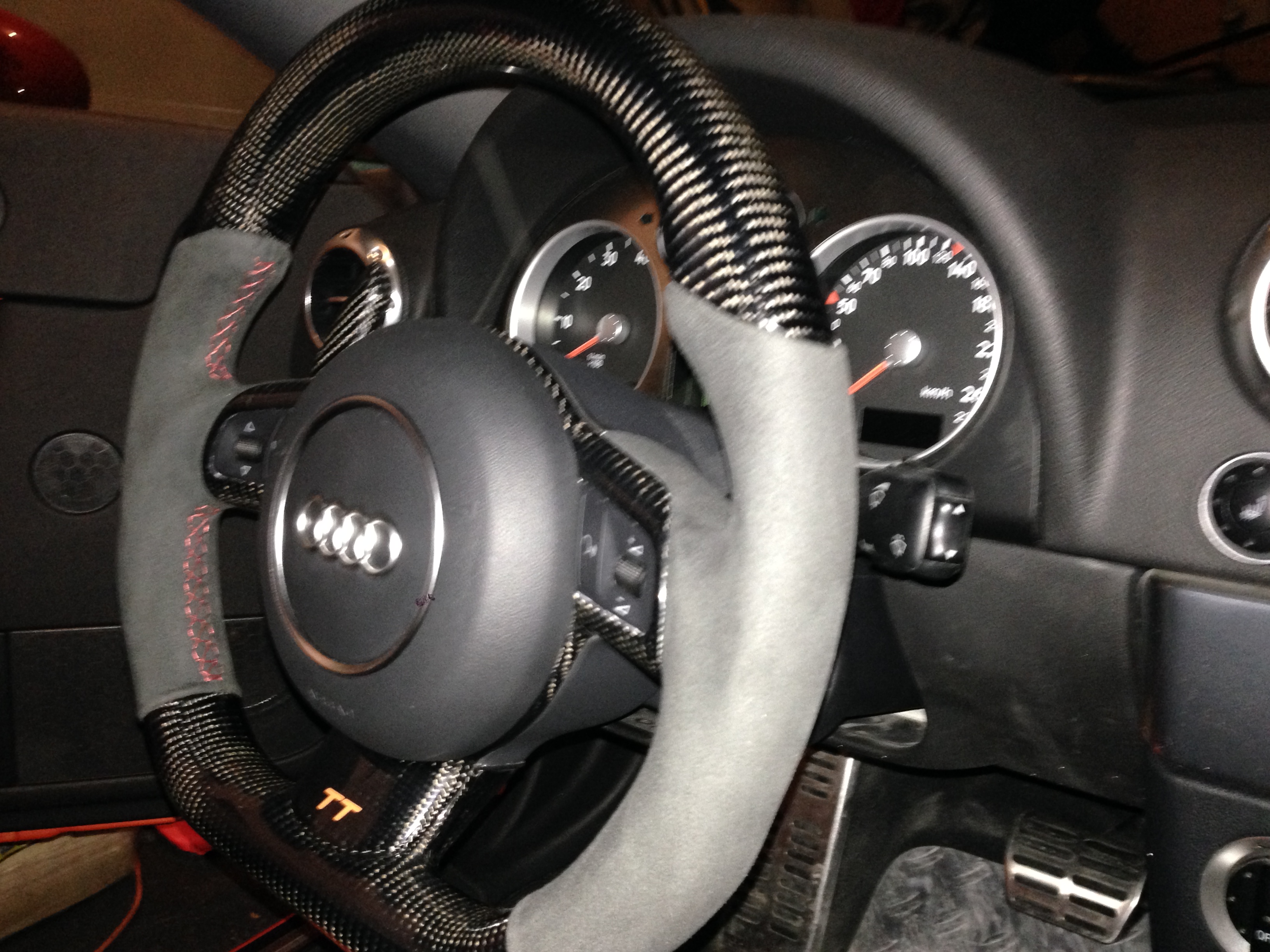

After install Pics

tuning - audi tt mk2 steering fitted on a mk1 steering wheel conversion audi tt mk1 audi tt tuning - Audi Flat Bottom Steering Wheel audi tt mk1 8n tuning - Steering wheel swap

Advertisements

About andre-martin hobbs

I started this blog just recently because I have so much fun modifying my MK1 TT... that I need to let the world know! And it's also a good reference when looking back at my mods. Ciao for now! Andre
This entry was posted in My Audi TT RS Project and tagged , . Bookmark the permalink.

27 Responses to Steering Wheel Swap on my Audi TT / Flat Bottom Mk2 fitted on a Mk1

  1. loren whan says:

    Nice job been looking at flat wheel… now just trying to afford it LOL

  2. Jay says:

    Andre, that wheel is sick! Absolutely incredible workmanship. Excellent job on the write up as well.

  3. mike says:

    You know this airbag will NOT deploy correctly right? The MK2 TT airbag is a dual stage bag, and will not fire off correctly (or at all) being wired to an airbag module that is made for a single stage airbag, Just thought you might want to know if you didnt already

    • Hello Mike,

      It’s been proven that wiring a 2 stage airbag as a 1 stage and manually triggering the firing mechanism will fully inflate the airbag. What hasn’t been proven is whether a 2 stage airbag wired as a 1 stage airbag will react the same way a 1 stage airbag would react in an accident under the exact same circumstances. Until that is methodically tested, everything and anything said is just pure speculation.

      I think when you get involved w/ such modification you have to understand the possible consequences of what you’re getting yourself into. I know there are people out there that are going to argue to length that you shouldn’t do it, others will tell you you’ll be fine… Bottom line, it’s your decision because no one knows… You do it at your own risks and you better be willing and ready to assume any consequences, whatever these might be.
      Personally, it works for me and my airbag light and VagCom show no faults… and NO, I’m not going to crash my car just to prove a point! 🙂

  4. Lloyd Fields says:

    Hi Andre! I just received my airbag fresh from the UK, unfortunately it did not come with the wiring harness. I was wondering if you know of a place I can source the harness from? Thanks in advance! Lloyd

  5. Lloyd Fields says:

    Sorry, but follow=on to my post…. I forgot to tell you the airbag part# 8J0880201N6PS. Thanks 🙂

  6. Lloyd Fields says:

    Andre,
    Hi, I have a quick question for you. You mentioned toward the end of your steering wheel build about a change in photo (insert below)
    “This is the change from picture below as you only want to connect one of the airbag plugs
    -Green on the MK2 Loom to the black on the MK1 plug (next to the brown) Pin 2 on the yellow MK1 plug
    -Black on the MK2 Loom to the black on the MK1 plug (closest the edge & has green paint in the pic) Pin 1 on the yellow MK1 plug”

    What do you mean? Do I just go by what the photo has which is combine the black and the blue wire to pin 1 and the green and the white wire to pin 2.

    Thank you in advance.
    Lloyd

    • Hey Lloyd,

      Do not combine the wires! Mk2 Green (only) to Mk1 black on pin 2 and Mk2 Black to Mk1 Black on pin 1.
      Individually insulate both the blue and white like in the picture or in any other way. They simply need to be appart from one to the other and unplugged and unskinned.
      🙂

      Andre

  7. Adam Baumel says:

    If you don’t care to have the function of an airbag could you just install a MK2 wheel with an airbag cover and use vagcom to shut off the airbag light?

  8. Absolutely! But that would defeat the purpose of paying that much for a steering wheel! 🙂

  9. Adam Baumel says:

    I’m running bucket seats with 4 point harnesses the driver’s airbag literally provides no safety for me. Anyway the reason I asked is because I found an R8 steering wheel online and purchased it, but now I’m having trouble finding an airbag for it. The A8 looks the same, but I’m having trouble finding if it will mount up properly, etc.

  10. codrin says:

    i’m from romania and i have a question can i buy online a steering wheel like tha?

  11. Danny says:

    Hi all, what was the cost of getting that wheel custom made? Thanks

  12. Javier says:

    Where can I buy this steering wheel at? And how much was it?

  13. Garry Giles says:

    Hi Andre
    Loved the steering wheel swap. Can you tell me how much all the parts were to complete the job and do you know where I could get the work done ? I’m in the UK.
    Garry
    mrgagiles@gmail.com
