Prosport Gauge Install: Air-Fuel (Wideband) and Water Temp in my Audi TT Mk1


Another install!

Isn’t fun to have a car in the garage, winter time, when you’re not rushed to make mods… I can appreciate it! So here’s another mod I added to the TT in the past week: I installed the Prosport Gauges!

I got them by mail as they came from Tampa, FL. I was a bit afraid after reading mixed reviews on the gauge’s quality. It’s true to say that the overall plastic and component quality is not high-end, but then again, for this price what can you expect?

So I ordered two 60mm gauges, one Air/Fuel Ratio (Wideband) and one Water Temp. Water Temp? Yes, apparently this gauge is often faulty on TTs and since I don’t want to blow my engine… I decided to “get one of those”.

I first inserted the gauges in the Osir gauge pod. I decided to rotate them a bit, so the reading will be easier from the driver’s seat. Since the gauges are in the middle of the dash, it makes no sense to install them straight… My 2 cents.

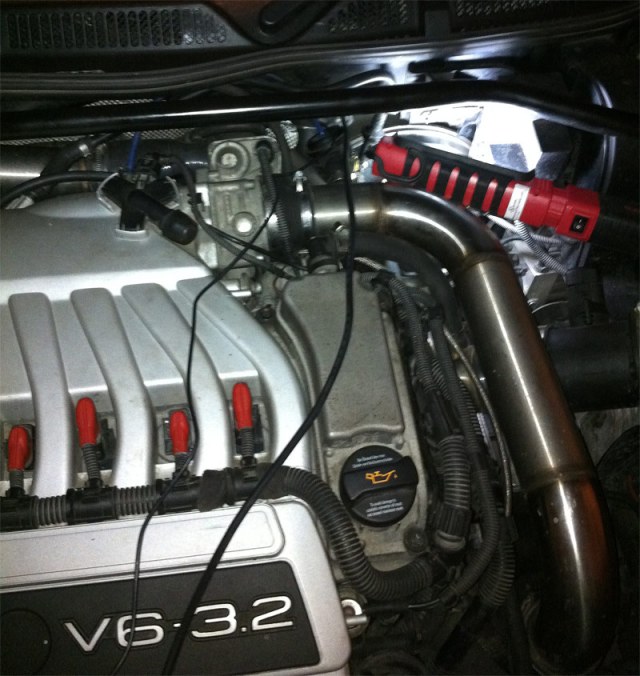

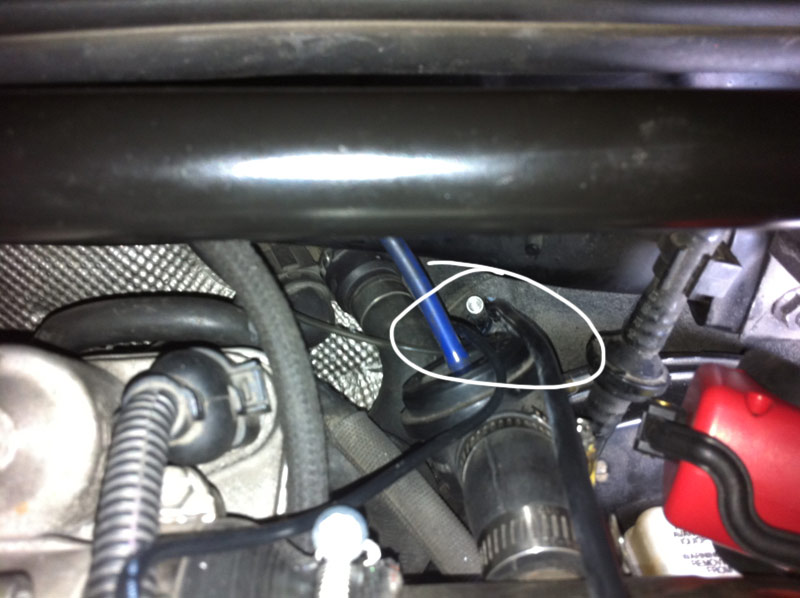

Once the gauges were secured in the gauge pod, I was left with the fun part: wiring the gauges with both electricity out of the fuse box and the gauge sensor. First things first, I needed to find where to insert the sensor wires from the engine compartment, through the firewall to the gauges. Found it! See pics below.

Audi-TT-MK1-8N-Gauge-Wiring-1

Audi-TT-MK1-8N-Gauge-Wiring-2

Once the sensors were wired to the gauges, the electrical part was left to do. For that, I needed, ground, constant 12v, headlight and ignition voltage. So I took out the dash and fuse box and wired the gauges. See below.

Audi-TT-MK1-8N-Fuse-Box-Wiring-3

Audi-TT-MK1-8N-Gauge-Wiring-Through-Dash-4

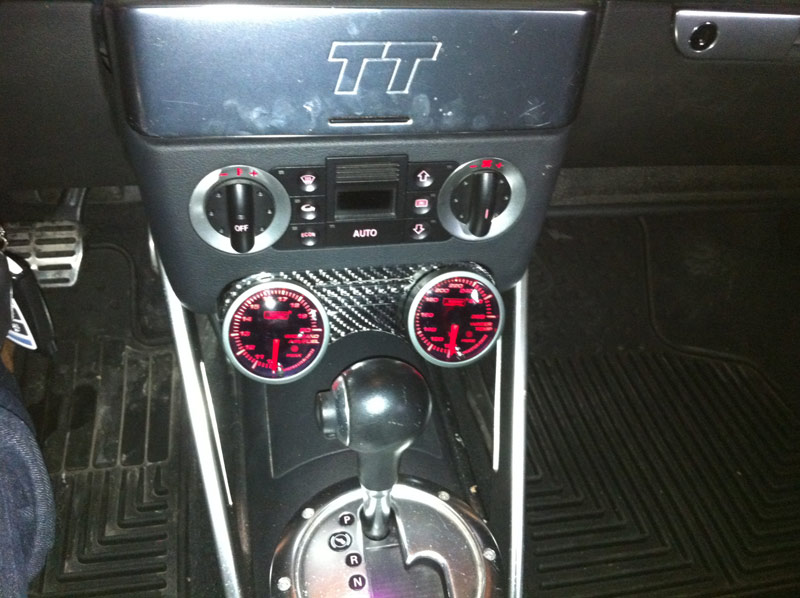

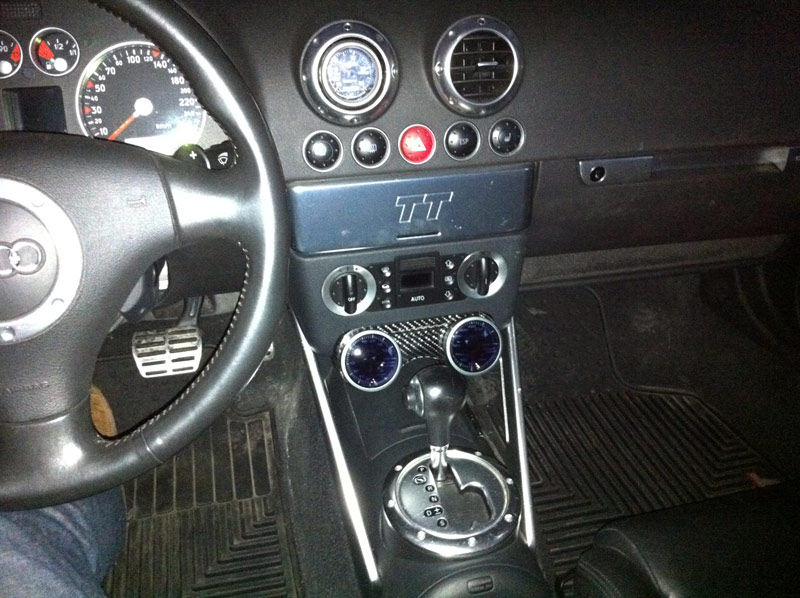

So that’s that! I connected all the electrical wires to the gauges, made some tests and re-assembled the dash. Here’s the final look.

Audi-TT-MK1-8N-Prosport-Gauge-Air-Fuel-Water-Temperature-5

Audi-TT-MK1-8N-Prosport-Gauge-Air-Fuel-Water-Temperature-light-6

Hope you like’em. The final touch will be a “TT RS” sticker between the two gauges. I’ll make a video of the gauges in action soon.

Cheers
